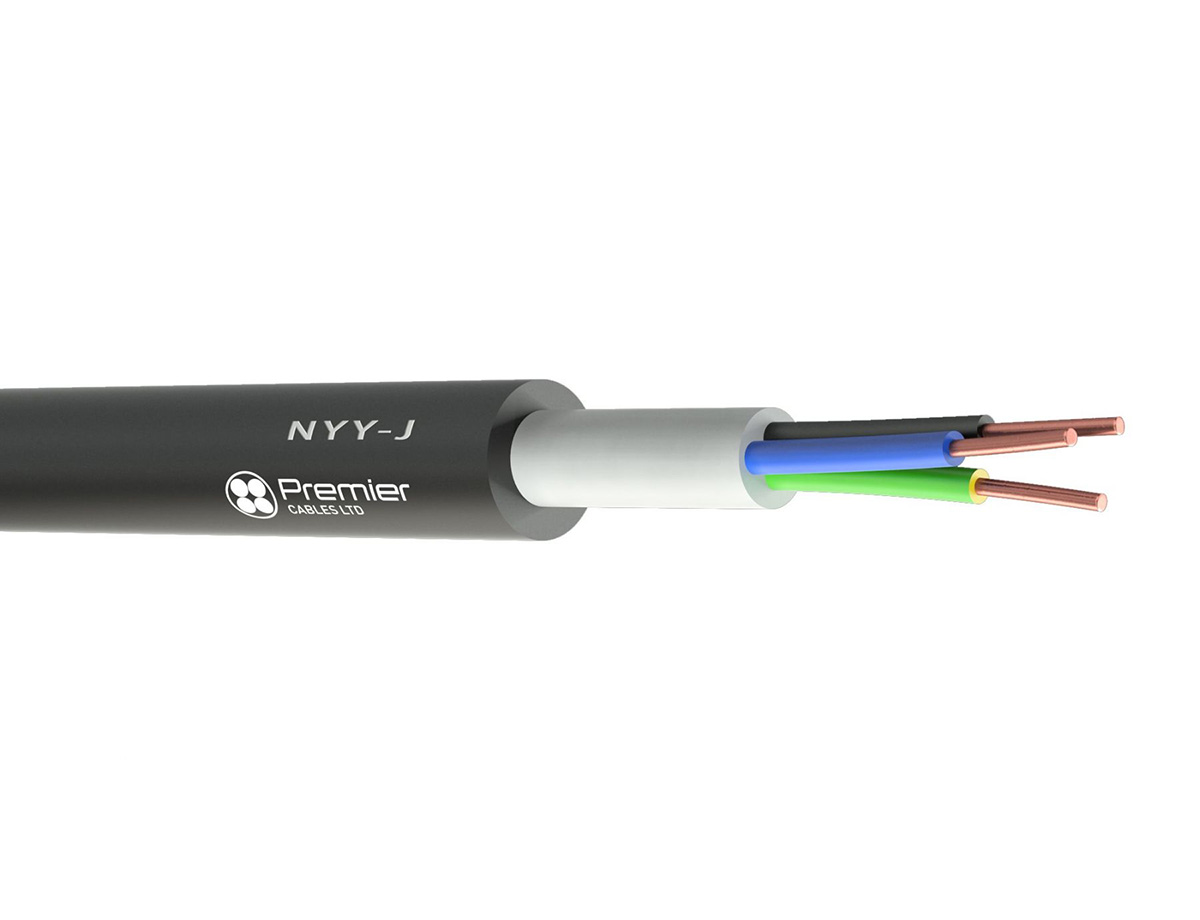

NYY cable

Primarily designed for fixed external wiring for energy supply.

Qty:
Add to Quote
Compare

Product Description

  • Power and Control Cable, suitable for use both internally or externally.
  • Primarily designed for fixed external wiring for energy supply.
  • Suitable for direct burial.
  • IEC 60502-1 BS EN/IEC 60332-1-2

Technical Specification

Conductor

Class 2 stranded copper conductor according to BS EN 60228 (previously BS 6360)

Insulation

PVC (Polyvinyl Chloride)

Sheath

PVC (Polyvinyl Chloride)

Rated Voltage [V]

600/1000

working temp fixed min/max [°C]

-25°C to +90°C

Minimum Bending Radius

12 x overall diameter

Core Identification

2 core: Blue Brown, 3 core: Brown Black Grey, 4 core: Brown Blue Black Grey, 5 core: Green/Yellow Brown Black Grey Blue
